Main Facts: The Illusion of Precision in Modern Data
Turn an abstract quantity into a physical distance and draw it to scale, and a number nobody can feel becomes one anybody can see.
At the 2026 Hungarian Grand Prix, Lewis Hamilton secured second place in a fiercely contested qualifying session, missing out on pole by a razor-thin 0.012 seconds. On the official world broadcast, this margin flashed onto millions of screens worldwide as a deceptively simple string of characters: +0.012s. Within seconds, the graphic vanished, replaced by the relentless churn of live sports television.
Did that number resonate? For the vast majority of viewers, the answer is a flat no. Twelve thousandths of a second is an abstract quantity that defies human comprehension. No one possesses an innate neurological calibration for twelve-thousandths of a second. It is a sterile, weightless metric.
However, consider framing that exact same fact through a different lens: Hamilton was parked a mere 1.1 metres behind pole position—roughly the length of a single Formula 1 car’s nose cone. Suddenly, the mental landscape shifts. The data transforms from an arcane timing discrepancy into a visceral, spatial reality. Readers can instantly picture two high-performance racing machines running nearly neck-and-neck, one barely edging the other across the finish line.
Nothing about the underlying statistical fact changed. Only the unit of measurement did. This chasm between a raw, unfeeling number and an intuitive, bodily feeling represents one of the most persistent hurdles in professional data visualization. When a statistical figure fails to land with an audience, designers often make the mistake of pushing for greater precision. Instead, the solution is delightfully simple: stop chasing decimals and start translating abstract quantities into physical space.
Chronology: The Evolution from Digital Flashes to Spatial Realities
To understand why spatial translation works so effectively, it helps to examine how human beings process quantitative data over time. From an evolutionary standpoint, human cognition is poorly equipped for abstract mathematics. Ask an average person whether 0.238 seconds represents a significantly larger gap than 0.012 seconds, and they are forced to pause, engage their analytical working memory, and perform mental arithmetic.
Conversely, ask that same person whether a 20-metre distance dwarfs a one-metre gap, and they will answer instantly. This is not because they calculated the ratio; it is because humans possess an innate, deeply ingrained physical intuition for space, size, and locomotion. People have been calibrating their understanding of distance—how long it takes to walk across a room, how far a ball travels when thrown, how large a vehicle is—since long before they learned how to read.
The Power of Spatial Anchors
This foundational cognitive trait explains why equivalent physical metaphors dominate effective communication:
- "An area the size of Wales" routinely outperforms square-kilometer figures in journalistic prose because it leverages geographic intuition.
- Transit maps that incorporate walking times communicate utility far faster than raw counts of subway stops.
In each scenario, the designer is not burdening the reader with novel information; rather, they are handing the audience a cognitive grip they already know how to hold.
Supporting Data: The Mathematics of Motion
At its core, bridging the gap between time and space requires a straightforward formula. The mechanics of converting temporal gaps into physical tracks rely on a consistent conversion rate.
$$textDistance = textQuantity times textMeaningful Rate$$
For moving objects like Formula 1 cars, that rate is speed. During a qualifying lap at the Hungarian Grand Prix, a modern F1 car screams across the start-finish straight at approximately 300 kilometers per hour, translating to roughly 83 meters covered every single second.
When applied mathematically:
- One-tenth of a second equates to roughly 8 meters of tarmac.
- Hamilton’s 0.012-second deficit computes to 1.1 meters of physical space.
- The cumulative top-six qualifying spread, compressed to a modest 0.518 seconds on standard timing screens, stretches out across 47 meters of real-world racetrack.
Comparing Visualizations: The Bar Chart vs. The Track
To appreciate the impact of this translation, consider how traditional data visualization handles these metrics. The conventional approach relies on a horizontal bar chart ranking drivers from pole position downward.
While a bar chart is fundamentally honest, ranks drivers accurately, and highlights that the performance gap back to sixth place is vastly larger than the gap to second, it suffers from a fatal flaw: a bar is not a place.
Looking at a bar chart, viewers see a short sliver for Hamilton and a longer bar for Max Verstappen. They understand intellectually that sixth place was further back, but they feel nothing. The visualization answers the question “How much slower?” while remaining entirely oblivious to “How far away?”

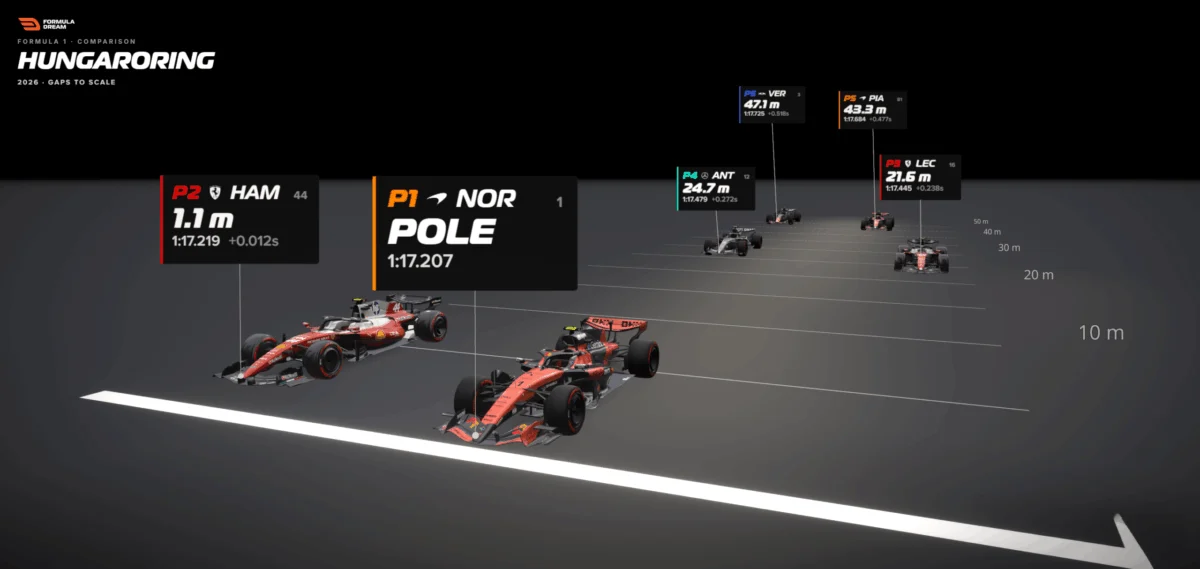

When those exact same numbers are replotted onto a to-scale diagram of a race track straightaway, everything changes. Readers immediately perceive that Hamilton is planted squarely on the gearbox of the pole-sitter, close enough to reach out and touch. They see Charles Leclerc, trailing by a mere quarter of a second, sitting more than 20 meters adrift. The empty space between the cars does the heavy lifting, allowing human intuition to absorb a weight that no rectangular bar chart could ever convey.
Official Responses and Methodological Transparency: Honesty in Design
Any rigorous data visualization must be entirely transparent regarding its methodology and limitations. Transforming timing sheets into spatial representations involves deliberate design choices, and acknowledging these parameters preserves the audience’s trust.
The Mechanics of the Layout
The mathematical pipeline utilized by specialized tools—such as the Formula Dream Gap Visualizer—is intentionally straightforward:
- Reference Speed: Take the reference (pole-sitting) car’s measured speed through the speed trap near the start-finish line during its fastest lap.
- Positional Stacking: Place the reference car’s nose precisely on the finish line, plotting all trailing cars backward along a single dimension based on their calculated time-to-distance gaps.
- Lateral Offsetting: Nudge the cars slightly off-center along the horizontal axis. This adjustment carries zero quantitative data; it exists purely to prevent overlapping icons, ensuring every car remains visible to the viewer.
Acknowledging Model Constraints
Professional data journalists must openly communicate what their models can and cannot show. This visualization acts as a freeze-frame model governed by a specific counterfactual premise: If every car traveled at the reference car’s exact line speed, this is the physical spacing that would exist at the precise microsecond the leader crosses the line.
Of course, real-world qualifying gaps accumulate across every inch of a circuit, built up through high-speed sweeping corners, technical chicanes, and braking zones. Plotting those accumulated gaps onto a flat straight using a single top-speed metric is an intentional simplification. However, near the finish line—where cars are traveling at maximum velocity—a flat-out speed trap provides the most accurate physical analogue available.
By openly stating these boundaries, the visualization avoids the trap of "fake precision." Readers instinctively trust charts that candidly outline their own operational limitations.
Implications: Broadening the Horizon Beyond Motorsport
The principle of translating time-to-distance—or converting invisible metrics into physical space—extends far beyond the realm of sports analytics. Once this technique is unlocked, designers can apply it across diverse professional disciplines:
- Finance & Economics: Instead of quoting abstract national debt figures in trillions of dollars, visualize how high a stack of physical currency would reach, or how long it would take to count dollar by dollar.
- Logistics & Supply Chain: Rather than listing delivery lead times in abstract hours, map them against familiar geographic radiuses or walking commutes within urban centers.
- Environmental Science: Translate carbon emissions or melting polar ice volumes into volumetric equivalents, such as filling familiar stadiums or submerging well-known architectural landmarks.
The underlying structural pattern remains identical across every use case: identify the appropriate conversion rate, map the abstract unit to an innate physical sensation, and draw the result to scale.
Conclusion: Giving Data a Body
When raw numbers fail to resonate with an audience, the default industry reflex is to throw more design firepower at the problem—adding extra decimal places, enlarging font sizes, or incorporating glaring color gradients.
The seasoned data visualizer does the exact opposite. They pause, interrogate the dataset, and ask: What physical reality does this quantity actually represent?
A hundredth of a second is an intangible phantom. A car’s nose cone sitting mere inches away from a rival’s rear wing is a visceral reality. The underlying data points remain completely unchanged, but by wrapping them in physical space, the numbers are finally given a body.
Next time a dataset falls flat, do not demand more precision from the reader. Simply give the numbers a distance, and let human intuition handle the rest.
