Breaking the Barrier: MIT’s Breakthrough in Solid-State Lidar Technology

Lidar (Light Detection and Ranging) has long been the "eyes" of the autonomous revolution. By firing rapid pulses of infrared light and measuring the time it takes for them to bounce back, these systems construct high-fidelity, three-dimensional maps of the surrounding environment in real time. For self-driving cars, industrial drones, and advanced robotics, lidar is the difference between seamless navigation and catastrophic failure.

However, the technology has remained tethered to physical limitations. Traditional lidar systems are often bulky, expensive, and reliant on mechanical, rotating components—parts that are prone to wear and tear, and which significantly limit the longevity and reliability of the sensor. A team of researchers at the Massachusetts Institute of Technology (MIT) has now unveiled a pioneering approach that could render these mechanical headaches a thing of the past, paving the way for compact, durable, and high-performance "solid-state" lidar chips.

The Silicon-Photonics Paradigm Shift

The MIT team’s innovation centers on silicon photonics, a branch of semiconductor technology that manipulates light rather than electrical signals. By integrating light-steering capabilities directly onto a silicon chip, researchers can theoretically replace complex, moving lidar units with a static, flat, and highly resilient device.

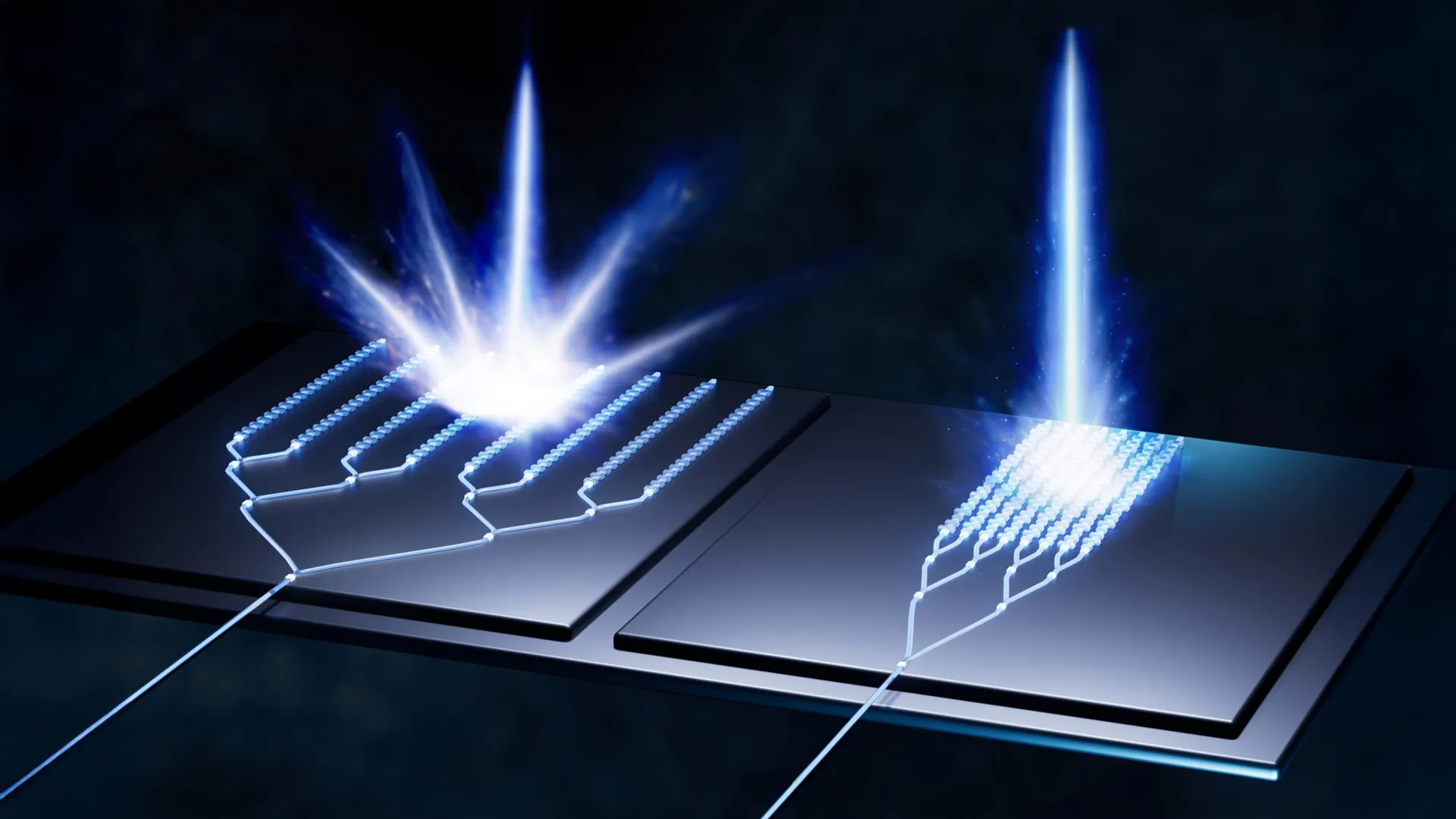

Despite the promise of silicon photonics, early iterations have been plagued by a fundamental performance gap: a narrow field of view. To scan the environment, these chips utilize an Integrated Optical Phased Array (OPA). An OPA steers light by manipulating the phase of the beams emanating from an array of tiny antennas. When antennas are spaced widely apart, the system fails to capture a comprehensive view, resulting in "blind spots" at the edges of a scene. When engineers attempted to pack these antennas closer together to broaden the viewing angle, they triggered "crosstalk"—a phenomenon where neighboring antennas interfere with each other, creating noise, reducing measurement accuracy, and generating "grating lobes" (false, ghost-like beams that confuse the sensor).

The MIT breakthrough, published recently in Nature Communications, introduces a clever design architecture that allows antennas to be packed tightly together without the detrimental effects of crosstalk, effectively solving a decades-old puzzle in integrated optics.

Chronology of the Innovation: From Theory to Chip

The path to this discovery was one of rigorous iterative design, moving from fundamental electromagnetic theory to sophisticated computer modeling and, ultimately, fabrication.

Phase 1: Identifying the Coupling Crisis

The team, led by Jelena Notaros, the Robert J. Shillman Career Development Associate Professor of Electrical Engineering and Computer Science (EECS) at MIT, identified that the "crosstalk" problem was structural. In conventional OPAs, every antenna in the array is identical. When placed in close proximity, these identical structures naturally resonate with one another, causing light to leak between channels.

Phase 2: The Three-Antenna Geometry Solution

To mitigate this, the researchers moved away from the "one-size-fits-all" design. Instead, they developed a repeating unit consisting of three distinct antenna shapes. By varying the width of the antennas and the size and placement of the "corrugations"—the tiny surface features that scatter light upward out of the chip—the researchers successfully altered the propagation coefficient of each antenna.

Because each of the three antennas possesses a unique propagation coefficient, they effectively become "invisible" to one another. An antenna no longer "sees" its neighbor, preventing the electromagnetic coupling that previously ruined signal clarity.

Phase 3: Harmonizing the Output

The greatest technical hurdle remained: how to make these three different physical structures behave as a unified whole. For the lidar to work, all antennas must emit the same amount of light and steer the beam at the exact same angle when receiving the same wavelength.

Using advanced electromagnetic modeling, the researchers spent months refining the geometries. By carefully calculating the radiative modes of each antenna, they achieved a design where, despite their different physical forms, the antennas operate with identical emission characteristics.

Phase 4: Experimental Validation

The final phase involved manufacturing the device and testing it in a controlled environment. The results were stark. While a conventional OPA with these spacing parameters would typically experience 100 percent coupling—effectively destroying the beam’s integrity—the MIT-designed chip reduced that interference to approximately 1 percent. The result was a single, clean, precise laser beam capable of wide-angle scanning without the noise of grating lobes.

Supporting Data: Why This Matters

The implications of this reduction in interference are significant for the scalability of lidar technology.

• Interference Mitigation: By reducing crosstalk from 100% to 1%, the team has essentially eliminated the primary noise source in integrated OPAs.
• Beam Precision: The ability to steer a clean beam without generating "grating lobes" means that autonomous vehicles can now distinguish between an actual obstacle and a sensor-generated ghost signal.
• Energy Efficiency: False beam copies (grating lobes) consume significant power. By concentrating energy into a single, primary beam, the new chip design is far more energy-efficient, a critical factor for battery-powered electric vehicles and drones.

The study, which includes lead author and EECS graduate student Henry Crawford-Eng, along with colleagues Andres Garcia Coleto, Benjamin M. Mazur, Daniel M. DeSantis, and Tal Sneh, proves that high-performance, solid-state lidar is not just a theoretical possibility, but a manufacturable reality.

Official Responses and Peer Perspectives

The research community has received the findings with enthusiasm, noting the "elegant" nature of the solution.

"This work addresses a longstanding challenge in integrated optical phased arrays: simultaneously achieving both a wide field of view, which requires dense antenna spacing, and high beam quality, which requires low crosstalk between neighboring antennas," says Joyce Poon, professor of electrical and computer engineering at the University of Toronto and director of the Max Planck Institute of Microstructure Physics. Poon, who was not involved in the study, describes the innovation as a "significant step forward for chip-scale, solid-state beam-steering technology."

Jelena Notaros emphasizes that this is merely the beginning of a broader shift in lidar design. "The functionality we demonstrated in this work solves a fundamental problem for integrated optical-phased-array technology, enabling future lidar sensors that can achieve significantly higher performance than we could demonstrate previously," she stated.

Implications for the Future of Autonomy

The transition to solid-state lidar has been the "holy grail" of the automotive and robotics industries for years. Moving away from rotating parts means sensors can become smaller, lighter, and virtually immune to mechanical failure, allowing them to be embedded directly into the chassis of a car or the frame of a drone.

Beyond Autonomous Vehicles

While the most immediate application is the automotive sector, the technology holds promise for a variety of industries:

• Aerial Mapping: Lightweight, solid-state sensors could allow drones to map terrain with unprecedented detail, even in rugged, hard-to-reach environments.
• Construction and Mining: Monitoring site safety and progress requires durable sensors that can withstand dust, vibration, and extreme conditions—environments where mechanical lidar often fails.
• Robotics: As robots become more integrated into human spaces, they require compact, high-resolution spatial awareness that only next-generation lidar can provide.

Conclusion and Next Steps

The MIT team is not resting on the success of this prototype. They are already working to refine the method to further expand the viewing range of the OPA. Additionally, the team is exploring a secondary theoretical pathway discovered during the research process that could yield even greater performance in the future.

By transforming how we think about antenna arrays—moving from a standard, uniform design to a sophisticated, heterogeneous system—MIT researchers have opened the door to a new generation of sensors. As these chips move from the laboratory to the assembly line, the vision of safer, more efficient autonomous navigation becomes significantly clearer.

This research was supported by the Semiconductor Research Corporation, the National Science Foundation, an MIT MathWorks Fellowship, the U.S. Department of War, and the MIT Rolf G. Locher Endowed Fellowship. Some of the fabrication work was conducted at the MIT.nano facilities.
