Lidar—the light detection and ranging technology that acts as the "eyes" for autonomous vehicles—is undergoing a fundamental transformation. For years, the industry has been hamstrung by the physical limitations of mechanical sensors: they are bulky, expensive, and prone to wear-and-tear due to the moving parts required to steer laser beams. Now, researchers at the Massachusetts Institute of Technology (MIT) have unveiled a breakthrough in silicon-photonics technology that could pave the way for a new generation of compact, durable, and high-performance lidar systems. By eliminating the need for mechanical components, this innovation brings us one step closer to the seamless integration of 3D-sensing technology into everything from self-driving cars to industrial robots and drones.
The Mechanical Dilemma: Why Current Lidar Needs to Evolve
At its core, lidar functions by firing pulses of infrared light into the environment. When these pulses hit an object, they bounce back to the sensor, allowing the system to calculate precise distances and reconstruct a detailed 3D map of the surroundings. For autonomous vehicles, this is the gold standard for object detection and navigation.
However, the traditional method of achieving this "vision" is inherently flawed. Most conventional lidar systems rely on spinning mirrors or rotating assemblies to direct light pulses across a scene. This mechanical architecture introduces significant vulnerabilities: it adds bulk, increases unit costs, and creates mechanical failure points that are particularly problematic in harsh, real-world environments like construction sites or high-speed highway driving. As autonomous systems strive for greater reliability, the industry has been searching for a "solid-state" alternative—a system with no moving parts that can electronically steer light.
Silicon Photonics: A Shift to Semiconductor Control
The MIT team’s breakthrough centers on a sophisticated silicon-photonics chip. Unlike traditional electronics that rely on moving electrons to process signals, silicon photonics uses semiconductor devices to manipulate light directly.
The specific mechanism at the heart of this innovation is the integrated optical phased array (OPA). An OPA acts as a solid-state equivalent to a rotating mirror; by electronically controlling the phase of light as it exits a series of tiny antennas on a chip, the system can steer a beam in any direction. This allows the lidar to scan its environment without a single component physically shifting position.
The "Antenna Spacing" Problem: A Technical Stumbling Block
While the concept of the OPA has existed for years, implementing it efficiently has proven notoriously difficult. To achieve a wide, clean field of view, the antennas on the chip must be placed in close proximity to one another. However, as the antennas are packed tighter, they begin to "couple"—a phenomenon where light leaks from one antenna to its neighbor.
This crosstalk causes two major issues. First, it degrades the quality of the signal, creating "grating lobes"—unwanted copies of the beam that project in different directions. These lobes not only consume valuable energy but also confuse the sensor, leading to false detections. Second, to avoid this interference, engineers historically had to space the antennas further apart. But wider spacing creates its own failure mode: it limits the angular range of the device, creating "blind spots" that prevent an autonomous vehicle from accurately seeing anything outside a narrow window directly in front of it.
For years, the industry has been caught in this engineering trap: prioritize a wide field of view, and you lose signal clarity; prioritize signal clarity, and you lose the necessary range.
Redesigning the Physics of the Array
The MIT research team, led by Jelena Notaros, the Robert J. Shillman Career Development Associate Professor of Electrical Engineering and Computer Science (EECS), solved this dilemma by rethinking the geometry of the antenna array. Instead of using a uniform row of identical antennas—the industry standard—the team introduced a repeating sequence of three distinct antenna shapes.

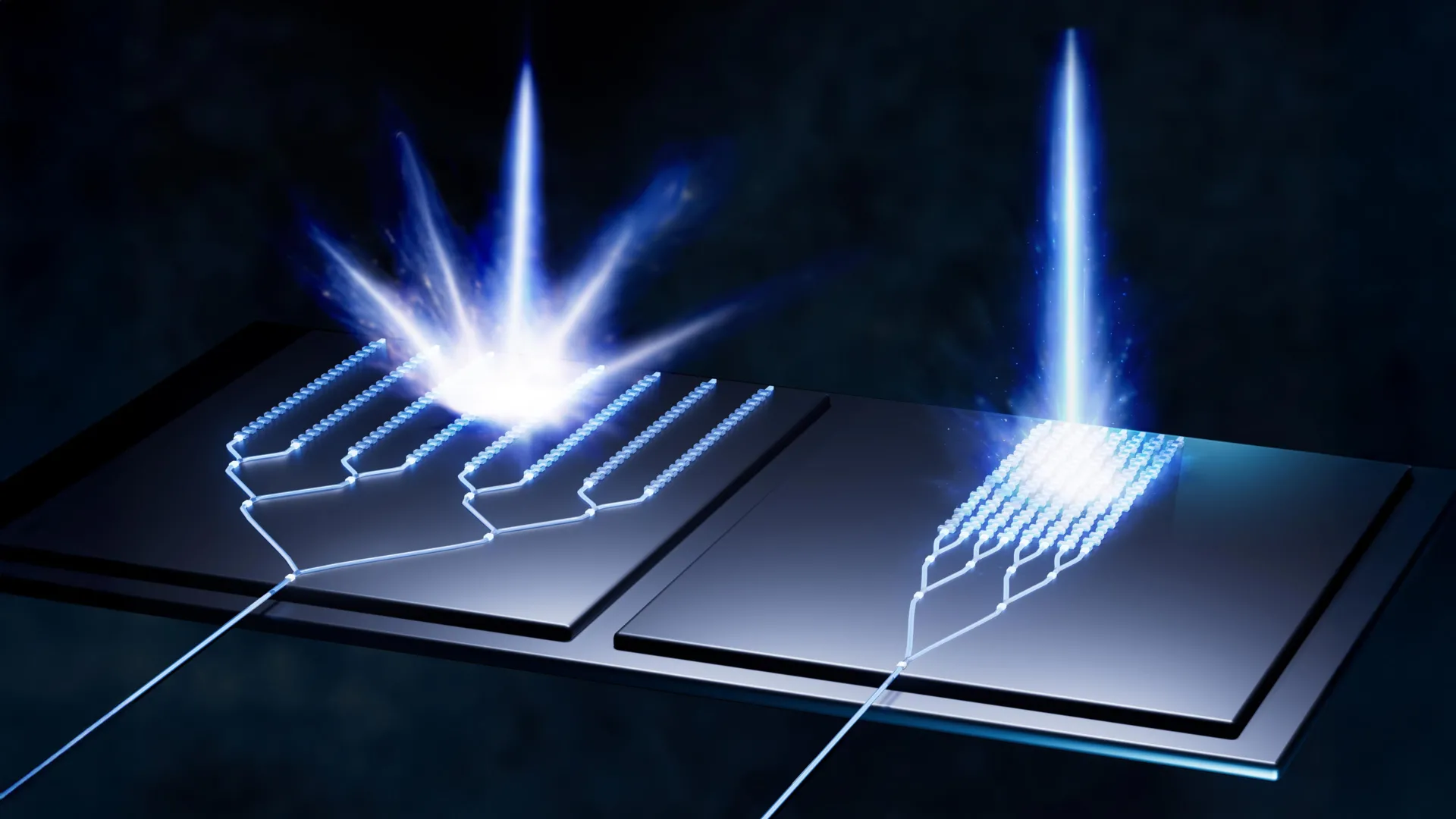

By varying the width of the antennas and the specific pattern of "corrugations" (tiny features along the length of the antenna that scatter light upward), the researchers altered the "propagation coefficient" of each structure. Because each antenna in the set has a unique propagation coefficient, it essentially becomes "invisible" to its neighbors. The antennas are physically close enough to support a wide field of view, but they do not "see" or interfere with one another.
"Because the antennas have very different propagation coefficients, when we put them close together, essentially each antenna doesn’t ‘see’ the antenna next to it," explains Andres Garcia Coleto, an EECS graduate student and member of the research team.
Bridging the Gap: Uniformity Through Complexity
Designing antennas with different shapes was only half the battle. The team faced a daunting requirement: while the antennas needed different geometries to prevent crosstalk, they had to behave identically in terms of their output. Each antenna had to emit the exact same amount of light, at the same angle, at the same wavelength.
"We have this challenge where we require the antennas to have different geometries to reduce the crosstalk, but we need to simultaneously design the antennas to have the same emission characteristics," says lead author and EECS graduate student Henry Crawford-Eng. "While it is possible to engineer this, it is extremely difficult because, typically, when antennas are designed with different geometries, they tend to behave differently."
To bridge this gap, the team developed a robust theoretical framework for how radiative modes couple, using advanced computer simulations to refine the designs. The result was a successful prototype that, when tested, demonstrated a massive reduction in crosstalk. While a conventional OPA with similar spacing would have seen nearly 100 percent interference, the MIT-designed chip reduced that coupling to roughly 1 percent, yielding a single, clean, and highly precise beam.
Official Responses and Peer Validation
The scientific community has lauded the research, which was recently published in the journal Nature Communications.
"This work addresses a longstanding challenge in integrated optical phased arrays: simultaneously achieving both a wide field of view, which requires dense antenna spacing, and high beam quality, which requires low crosstalk between neighboring antennas," says Joyce Poon, a professor of electrical and computer engineering at the University of Toronto and director of the Max Planck Institute of Microstructure Physics, who was not involved in the study. "Their innovation is an important step forward for chip-scale, solid-state beam-steering technology."
Jelena Notaros, the senior author of the paper, emphasized the broader impact of the discovery. "The functionality we demonstrated in this work solves a fundamental problem for integrated optical-phased-array technology, enabling future lidar sensors that can achieve significantly higher performance than we could demonstrate previously."
Future Implications: Beyond the Autonomous Car
The implications of this breakthrough extend far beyond the automotive sector. Because these chips are smaller, cheaper to manufacture using existing semiconductor foundries, and incredibly durable, they could revolutionize several high-precision industries:
- Aerial Mapping: Lightweight, solid-state lidar could be integrated into smaller drones, allowing for high-resolution mapping of remote or disaster-prone areas that are currently difficult to reach.
- Construction and Robotics: In industrial settings, these sensors could provide robots with a comprehensive 3D understanding of changing construction environments, improving safety and efficiency without the risk of mechanical breakdown.
- Mobile Sensing: The power-efficient nature of the chip could extend the battery life of mobile devices, potentially bringing advanced 3D spatial awareness to handheld electronics.
Chronology of the Development
- Initial Research Phase: The team established the theoretical framework describing how radiative modes couple, moving away from the assumption that uniform antenna design was the only path forward.
- Simulation and Modeling: Using the new theory, the team performed computer-aided design and simulations to verify that distinct antenna geometries could produce uniform light emission.
- Prototyping: The researchers manufactured the OPA using standard silicon-photonics fabrication processes, ensuring the design could be scaled for commercial production.
- Experimental Testing: The device was tested in a laboratory setting, confirming the reduction of crosstalk from 100 percent to 1 percent and the successful, interference-free steering of the light beam.
- Publication and Future Refinement: Following the publication of their findings in Nature Communications, the team is now focused on further broadening the viewing range and exploring alternative configurations discovered during the theoretical modeling phase.
Conclusion
The MIT research team has effectively dismantled one of the primary technical barriers to widespread, high-performance lidar. By proving that complex, non-identical antenna arrays can be engineered to act in perfect harmony, they have opened the door for a new generation of solid-state sensors. As the team continues to refine this technology, the path toward safer autonomous navigation and smarter industrial automation appears clearer than ever.
This research was supported by the Semiconductor Research Corporation, the National Science Foundation, an MIT MathWorks Fellowship, the U.S. Department of War, and the MIT Rolf G. Locher Endowed Fellowship. Some of the experimental work was conducted using the state-of-the-art facilities at MIT.nano.
